EcoImpact 1

EcoImpact – élucider l’impact écologique des micropolluants dans les eaux courantes

La contamination des systèmes d’eau douce par des micropolluants est considérée de nos jours comme un problème environnemental majeur. S’il existe quantité de données concernant l’impact des micropolluants sur des organismes précis, nous en savons en revanche peu sur la manière dont ces micropolluants affectent la structure et la fonction complexe d’écosystèmes aquatiques naturels entiers.

Le projet de recherche interdisciplinaire EcoImpact 1 mené à l’échelle de l’Eawag avait pour but de combler cette lacune scientifique. L’initiative EcoImpact 1 a été lancée en 2013 en prévision de la future mise à niveau des STEP en Suisse. Les modifications prévues dans ce cadre représentent une occasion unique d’étudier l’impact des micropolluants sur les écosystèmes aquatiques naturels. Dans ce contexte, deux approches complémentaires ont été poursuivies : une étude de terrain sur des effluents de STEP choisis et des expériences contrôlées dans le système de canaux jaugeurs (Maiandros).

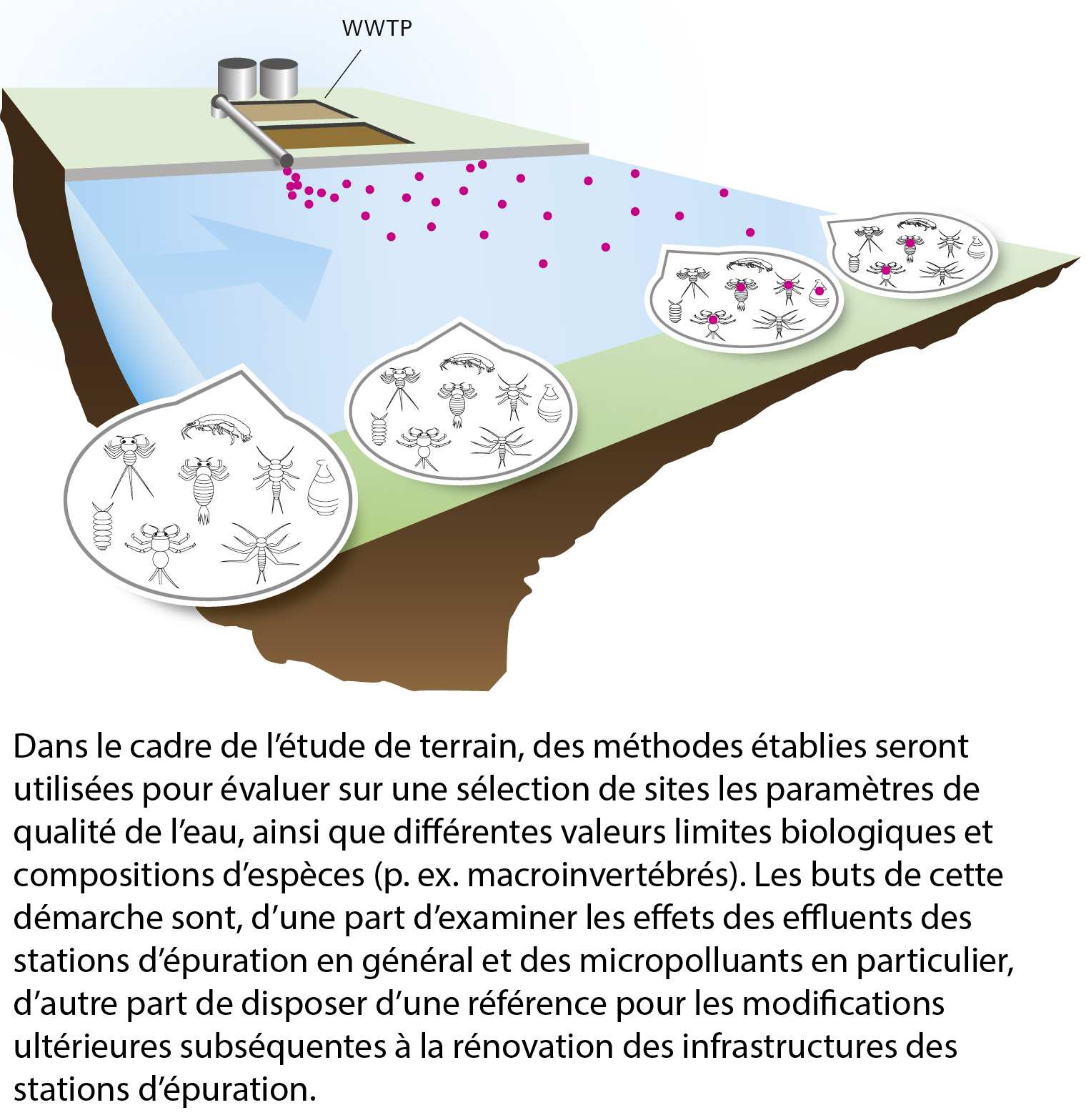

Dans le cadre de l'étude de terrain, des méthodes établies seront utilisées pour évaluer sur une sélection de sites les paramètres de qualite de l'eau, ainsi que différentes valeurs limites biologiques et compositions d'espèces (p.ex.macroinvert
Étude de terrain

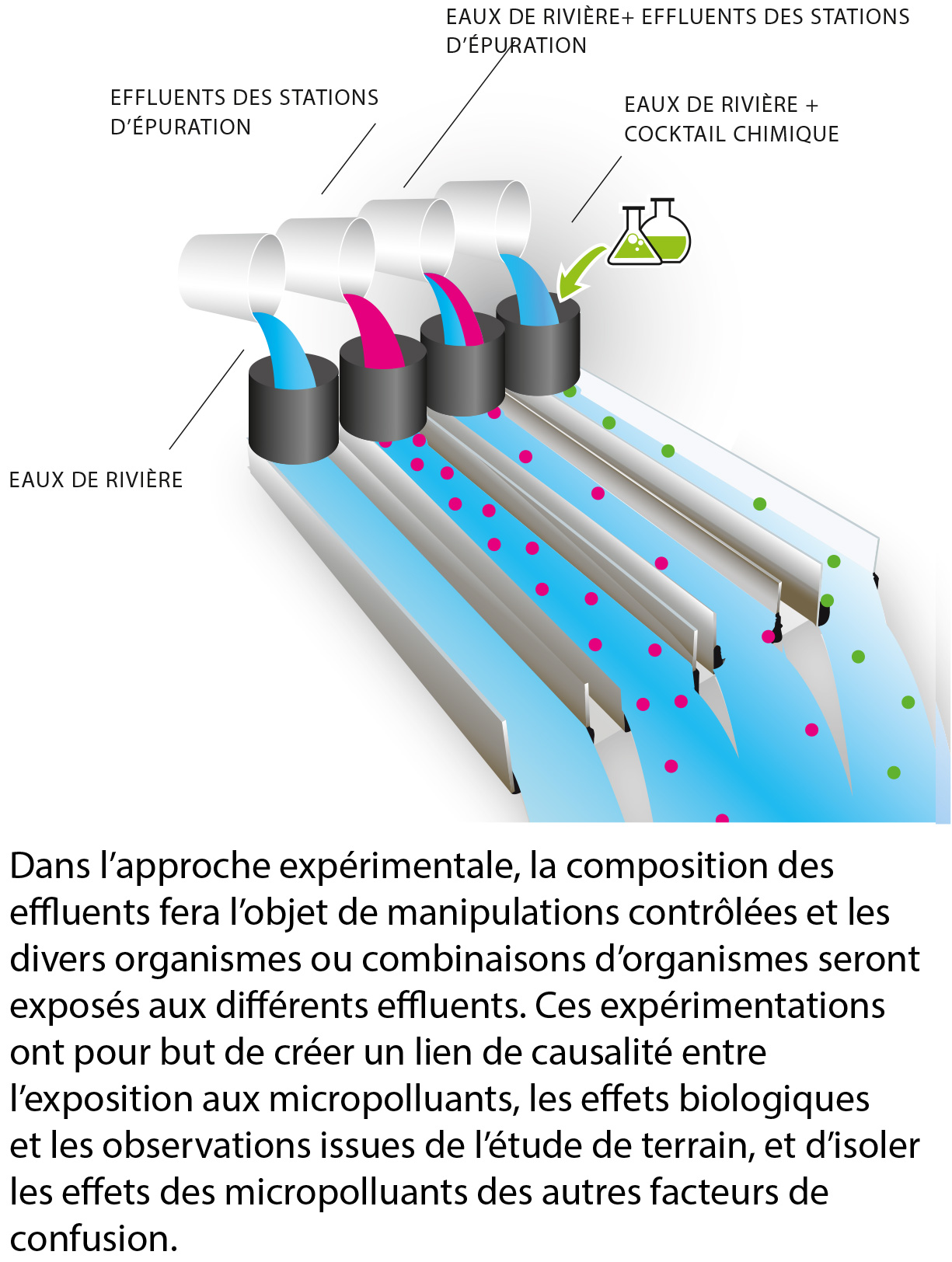

Dans l'approche expérimentale, la composition des effluents fera l'objet de manipulations contrôlées et les divers organismes ou combinaisons d'organismes seront exposés aux différents effluents.
Approche expérimentale

Contact

Dr. Christian Stamm Directeur adjoint Tel. +41 58 765 5565 Envoyez un message

Parentaires

Office fédéral de l'environnement, OFEV, Division Eaux

  • Aquabug, Sciences naturelles et environnement, Neuchatel

Les partenaires sont des autorités gouvernementales et cantonales ainsi que des entreprises et des organismes à but non lucratif.

Vidéo

Recherches dans le cadre de EcoImpact

Présentation (Vidéo) à l’université de Waterloo

12 janvier 2017
Orateur: Christian Stamm, Eawag
«Unraveling the impacts of wastewater-borne micropollutants in stream ecosystems»

Micropolluants

Les micropolluants (MP) sont des polluants chimiques organiques ou inorganiques présents dans l’eau à de très faibles concentrations. Malgré ces faibles niveaux de concentration, les MP peuvent tout de même avoir des impacts négatifs sur les organismes ou sur la qualité des eaux potables. Les MP sont issus de nombreux produits utilisés dans l’industrie, l’agriculture, le secteur du tourisme et par les ménages, notamment les produits cosmétiques, les matériaux de construction, les médicaments ou les biocides. Ils pénètrent dans le milieu aquatique par différentes voies d’apport telles que les eaux usées urbaines ou le ruissellement des terres agricoles et des surfaces de circulation.

Effets des micropolluants (MP)

Même à très faibles concentrations, les MP sont déjà susceptibles d’avoir des effets sur les organismes. Conçus comme des composés biologiquement actifs (p. ex. biocides, médicaments ou produits phytosanitaires), les micropolluants sont suspectés de provoquer des effets similaires, mais indésirables sur l’environnement. C’est ainsi que les produits phytosanitaires, par exemple, inhibent également le développement de certains organismes photosynthétiques aquatiques. De même, des vertébrés tels que les poissons peuvent réagir par exemple aux hormones et les insecticides ont un impact négatif sur les insectes des milieux aquatiques.

Élimination incomplète des micropolluants (MP) dans les stations d’épuration (STEP) conventionnelles

Pour un grand nombre de MP, les STEP constituent une voie d’accès majeure aux cours d’eau. Les STEP actuelles ont été conçues principalement pour éliminer les nutriments. De ce fait, elles ont contribué avec succès au respect des objectifs de protection des eaux. Au cours des dernières années, il s’est avéré que beaucoup de MP ne sont pas complètement éliminés dans les STEP et qu’il faut des étapes d’épuration supplémentaires. Dans le cadre de la « stratégie MicroPoll », les autorités suisses ont décidé d’équiper une centaine des STEP suisses (au total, il y en a 700) d’une étape d’épuration supplémentaire. Les modifications liées à ce projet représentent une opportunité unique d’étudier l’impact des MP sur des écosystèmes aquatiques naturels dans le cadre de notre projet de recherche EcoImpact.

Hypothèses et objectifs

En combinant des études de terrain et des approches expérimentales, EcoImpact 1 a testé les hypothèses suivantes :

  • Le rejet de MP provenant de STEP provoque des changements allant au-delà des effets d’autres composants de l’eau usée comme les nutriments (p. ex. la perte et la réduction d’espèces sensibles sur les sites en aval ou une tolérance induite envers les MP).
  • Il existe des effets indirects des MP, médiés par des interactions biologiques allant au-delà des effets directs de MP sur les organismes et les fonctions clés.

Le projet EcoImpact 1 a poursuivi trois objectifs :

  • Établissement de liens de causalité
    L’Eawag a étudié si les divergences écologiques observées entre les divers sites sont dues à différentes expositions à des groupes de MP (spécifiques). L’impact des MP doit être isolé de celui d’autres facteurs d’influence.

  • Intégration
    Le projet a englobé une multitude de paramètres moléculaires, physiologiques et écologiques, et intégré les différentes mesures, observations et tendances.

  • Conclusion d’ordre général
    Nous préconisons des déclarations d’ordre général plutôt que des déclarations individuelles propres aux différents sites étudiés.

Étude de terrain et sites d’étude

Dans le cadre de l’étude de terrain, des méthodes établies ont été utilisées pour évaluer les paramètres de qualité de l’eau, différents paramètres biologiques, la biodiversité et des caractères fonctionnels sur des sites choisis. Les 24 tronçons de rivière sélectionnés en amont et en aval de rejets de STEP se trouvent sur le Plateau suisse et dans le Jura. Les buts de cette démarche étaient, d’une part d’examiner les effets biologiques des eaux usées traitées en général et des MP en particulier, d’autre part de disposer d’une référence pour surveiller les modifications ultérieures subséquentes à la rénovation des infrastructures des STEP.

La sélection des sites étudiés reposait sur les critères suivants :

  • Seules les eaux courantes sont considérées comme des eaux réceptrices, pas les lacs.
  • Aucun rejet d’eaux usées en amont des STEP choisies
  • Par temps sec, la proportion des effluents en aval de la STEP est d’au moins 20 % (Q347)
  • Surface habitée sur le bassin versant < 21 %
  • Superficie allouée à la vigne et aux arbres fruitiers sur le bassin versant < 10 %
Source de données: © 2017 swisstopo (JD100041)

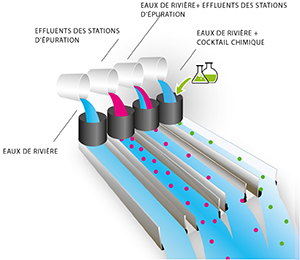

Approches expérimentales

Afin de pouvoir dissocier les effets de différents facteurs environnementaux sur la structure et la fonction des écosystèmes aquatiques, il faut procéder à des expérimentations. Dans le but d’étudier le rôle particulier de MP, nous avons à la fois effectué des expériences à petite échelle en laboratoire et élaboré Maiandros – un système de canaux dont le nom s’inspire du dieu grec Méandre (Μαίανδρος) du fleuve Méandre (dans l’actuelle Turquie).

Dans le système Maiandros, différents organismes peuvent être simultanément exposés à quatre différentes qualités d’eau contrôlées. A cette fin, Maiandros a été installé dans la STEP de Fällanden, en Suisse alémanique, où différentes expériences ont été exécutées. D’une part, la qualité de l’eau a été influencée par le mélange de l’eau de rivière avec des eaux usées purifiées de la STEP à proportions variables. D’autre part, l’eau de rivière a été enrichie avec des nutriments sélectionnés et/ou des mélanges de MP pour identifier d’éventuels effets opposés de nutriments et de MP.

Le système de canaux expérimental «Maiandros»

Résultats

Les résultats obtenus jusqu’à présent montrent que les MP ont des impacts sur les écosystèmes fluviaux. Sur tous les sites d’étude, le rejet d’eaux usées a augmenté la charge et les concentrations de MP dans les tronçons fluviaux en aval des STEP. Des tests biologiques montrent que ces concentrations augmentent les effets écotoxicologiques – par exemple, l’inhibition de la photosynthèse, sur différents paramètres fonctionnels. Les communautés de périphyton (biofilm constitué d’algues, de bactéries et de champignons) en aval sont plus tolérantes par rapport à ces MP et, sur certains sites, on a observé l’induction de l’expression de gènes nécessaires dans les activités de détoxification chez la truite de rivière. Tous ces résultats montrent que les MP exercent un stress physiologique sur les organismes. De tels effets ont également été observés sur des macroinvertébrés. En particulier, les espèces sensibles aux pesticides étaient décimées sur les sites en aval des STEP. Les fonctions de l’écosystème comme la décomposition des feuilles sont également affectées par le rejet d’eaux usées et, éventuellement, par les MP.

Les expériences qui ont été conduites en utilisant le système de canaux Maiandros. Elles ont permis d’élucider une partie des processus complexes constatés dans les études de terrain. Par exemple, des tests de dégradation utilisant des bandes de coton ont révélé que les nutriments « masquent » les effets toxiques de MP. Les résultats de l’étude de terrain et du système de canaux sont maintenant comparés pour mieux comprendre les tendances observées sur le terrain.

Publications

Les publications suivantes sélectionnées viennent le projet EcoImpact ou sont fortement associées à la rubrique.

Environmental context determines pollution impacts on ecosystem functioning

Global change assessments have typically ignored synthetic chemical pollution, despite the rapid increase of pharmaceuticals, pesticides and industrial chemicals in the environment. Part of the problem reflects the multifarious origins of these micropollutants, which can derive from urban and agricultural sources. Understanding how micropollutants harm ecosystems is a major scientific challenge due to asymmetries of stress across trophic levels and ecological surprises generated by multiple drivers interacting in human-impacted landscapes. We used field assays above and below municipal wastewater treatment plants (WWTPs) in 60 sampling locations across 20 Swiss streams to test how micropollutants and nutrients originating from WWTPs affect two trophic levels (microbes and detritivores) and their role in leaf litter processing. Wastewater impacts were asymmetric across trophic levels, with the detritivore contribution declining relative to microbial-driven decomposition. The strength of negative impacts were context dependent, peaking at sites with the highest upstream abundances of detritivorous invertebrates. Diffuse pollution from intensive agriculture and wastewater-born micropollutants contributed to reduced litter processing rates, including indirect effects apparently mediated through negative influences of insecticides on detritivores. Asymmetries in stress responses across trophic levels can introduce quantitative changes in consumer–resource dynamics and leaf litter processing. This means functional redundancies at different trophic levels are insufficient to compensate for biodiversity losses, causing environmental stressors such as chemical pollutants to have pervasive ecosystem-level impacts.
Burdon, F. J.; Reyes, M.; Schönenberger, U.; Räsänen, K.; Tiegs, S. D.; Eggen, R. I. L.; Stamm, C. (2023) Environmental context determines pollution impacts on ecosystem functioning, Oikos, 2023(2), e09131 (14 pp.), doi:10.1111/oik.09131, Institutional Repository

Wastewater constituents impact biofilm microbial community in receiving streams

Microbial life in natural biofilms is dominated by prokaryotes and microscopic eukaryotes living in dense association. In stream ecosystems, microbial biofilms influence primary production, elemental cycles, food web interactions as well as water quality. Understanding how biofilm communities respond to anthropogenic impacts, such as wastewater treatment plant (WWTP) effluent, is important given the key role of biofilms in stream ecosystem function. Here, we implemented 16S and 18S rRNA gene sequencing of stream biofilms upstream (US) and downstream (DS) of WWTP effluents in four Swiss streams to test how bacterial and eukaryotic communities respond to wastewater constituents. Stream biofilm composition was strongly affected by geographic location – particularly for bacteria. However, the abundance of certain microbial community members was related to micropollutants in the wastewater – among bacteria, micropollutant-associated members were found e.g. in Alphaproteobacteria, and among eukaryotes e.g. in Bacillariophyta (algal diatoms). This study corroborates several previously characterized responses (e.g. as seen in diatoms), but also reveals previously unknown community responses – such as seen in Alphaproteobacteria. This study advances our understanding of the ecological impact of the current wastewater treatment practices and provides information about potential new marker organisms to assess ecological change in stream biofilms.
Tamminen, M.; Spaak, J.; Tlili, A.; Eggen, R.; Stamm, C.; Räsänen, K. (2022) Wastewater constituents impact biofilm microbial community in receiving streams, Science of the Total Environment, 807(3), 151080 (8 pp.), doi:10.1016/j.scitotenv.2021.151080, Institutional Repository

Tolerance patterns in stream biofilms link complex chemical pollution to ecological impacts

Preventing and remedying fresh waters from chemical pollution is a fundamental societal and scientific challenge. With other nonchemical stressors potentially co-occurring, assessing the ecological consequences of reducing chemical loads in the environment is arduous. In this case study, we comparatively assessed the community structure, functions, and tolerance of stream biofilms to micropollutant mixtures extracted from deployed passive samplers at wastewater treatment plant effluents. These biofilms were growing up- and downstream of one upgraded and two nonupgraded wastewater treatment plants before being sampled for analyses. Our results showed a substantial decrease in micropollutant concentrations by 85%, as the result of upgrading the wastewater treatment plant at one of the sampling sites with activated carbon filtration. This decrease was positively correlated with a loss of community tolerance to micropollutants and the recovery of the community structure downstream of the effluent. On the other hand, downstream biofilms at the nonupgraded sites displayed higher tolerance to the extracts than the upstream biofilms. The observed higher tolerance was positively linked to micropollutant levels both in stream water and in biofilm samples, and to shifts in the community structure. Although more investigations of upgraded sites are needed, our findings point toward the suitability of using community tolerance for the retrospective assessment of the risks posed by micropollutants, to assess community recovery, and to relate effects to causes in complex environmental conditions.
Tlili, A.; Corcoll, N.; Arrhenius, Å.; Backhaus, T.; Hollender, J.; Creusot, N.; Wagner, B.; Behra, R. (2020) Tolerance patterns in stream biofilms link complex chemical pollution to ecological impacts, Environmental Science and Technology, 54(17), 10745-10753, doi:10.1021/acs.est.0c02975, Institutional Repository

Retrospective screening of high-resolution mass spectrometry archived digital samples can improve environmental risk assessment of emerging contaminants: a case study on antifungal azoles

Environmental risk assessment associated with aquatic and terrestrial contamination is mostly based on predicted or measured environmental concentrations of a limited list of chemicals in a restricted number of environmental compartments. High resolution mass spectrometry (HRMS) can provide a more comprehensive picture of exposure to harmful chemicals, particularly through the retrospective analysis of digitally stored HRMS data. Using this methodology, our study characterized the contamination of various environmental compartments including 154 surface water, 46 urban effluent, 67 sediment, 15 soil, 34 groundwater, 24 biofilm, 41 gammarid and 49 fish samples at 95 sites widely distributed over the Swiss Plateau. As a proof-of-concept, we focused our investigation on antifungal azoles, a class of chemicals of emerging concern due to their endocrine disrupting effects on aquatic organisms and humans. Our results demonstrated the occurrence of antifungal azoles and some of their (bio)transformation products in all the analyzed compartments (0.1-100 ng/L or ng/g d.w.). Comparison of actual and predicted concentrations showed the partial suitability of level 1 fugacity modelling in predicting the exposure to azoles. Risk quotient calculations additionally revealed risk of exposure especially if some of the investigated rivers and streams are used for drinking water production. The case study clearly shows that the retrospective analysis of HRMS/MS data can improve the current knowledge on exposure and the related risks to chemicals of emerging concern and can be effectively employed in the future for such purposes.
Creusot, N.; Casado-Martinez, C.; Chiaia-Hernandez, A.; Kiefer, K.; Ferrari, B. J. D.; Fu, Q.; Munz, N.; Stamm, C.; Tlili, A.; Hollender, J. (2020) Retrospective screening of high-resolution mass spectrometry archived digital samples can improve environmental risk assessment of emerging contaminants: a case study on antifungal azoles, Environment International, 139, 105708 (10 pp.), doi:10.1016/j.envint.2020.105708, Institutional Repository

Stream microbial communities and ecosystem functioning show complex responses to multiple stressors in wastewater

Multiple anthropogenic drivers are changing ecosystems globally, with a disproportionate and intensifying impact on freshwater habitats. A major impact of urbanization are inputs from wastewater treatment plants (WWTPs). Initially designed to reduce eutrophication and improve water quality, WWTPs increasingly release a multitude of micropollutants (MPs; i.e., synthetic chemicals) and microbes (including antibiotic‐resistant bacteria) to receiving environments. This pollution may have pervasive impacts on biodiversity and ecosystem services. Viewed through multiple lenses of macroecological and ecotoxicological theory, we combined field, flume, and laboratory experiments to determine the effects of wastewater (WW) on microbial communities and organic‐matter processing using a standardized decomposition assay. First, we conducted a mensurative experiment sampling 60 locations above and below WWTP discharges in 20 Swiss streams. Microbial respiration and decomposition rates were positively influenced by WW inputs via warming and nutrient enrichment, but with a notable exception: WW decreased the activation energy of decomposition, indicating a "slowing" of this fundamental ecosystem process in response to temperature. Second, next‐generation sequencing indicated that microbial community structure below WWTPs was altered, with significant compositional turnover, reduced richness, and evidence of negative MP influences. Third, a series of flume experiments confirmed that although diluted WW generally has positive influences on microbial‐mediated processes, the negative effects of MPs are "masked" by nutrient enrichment. Finally, transplant experiments suggested that WW‐borne microbes enhance decomposition rates. Taken together, our results affirm the multiple stressor paradigm by showing that different aspects of WW (warming, nutrients, microbes, and MPs) jointly influence ecosystem functioning in complex ways. Increased respiration rates below WWTPs potentially generate ecosystem "disservices" via greater carbon evasion from streams and rivers. However, toxic MP effects may fundamentally alter ecological scaling relationships, indicating the need for a rapprochement between ecotoxicological and macroecological perspectives.
Burdon, F. J.; Bai, Y.; Reyes, M.; Tamminen, M.; Staudacher, P.; Mangold, S.; Singer, H.; Räsänen, K.; Joss, A.; Tiegs, S. D.; Jokela, J.; Eggen, R. I. L.; Stamm, C. (2020) Stream microbial communities and ecosystem functioning show complex responses to multiple stressors in wastewater, Global Change Biology, 26(11), 6363-6382, doi:10.1111/gcb.15302, Institutional Repository

Coupling river concentration simulations with a toxicokinetic model effectively predicts the internal concentrations of wastewater-derived micropollutants in field gammarids

Although the exposure assessment of wastewater-derived micropollutants via chemical, bioanalytical, and modeling methods in environmental compartments is becoming more frequent, the whole-body burden (i.e., internal concentrations) in nontarget organisms is rarely assessed. An understanding of the internal concentration fluctuation is especially important when exploring the mechanistic linkage between exposure and effects. In this study, we coupled a simple river model with a first-order toxicokinetic (TK) model to predict the concentrations of wastewater-derived micropollutants in freshwater invertebrates (Gammarus spp.). We applied Monte Carlo simulations and conducted laboratory experiments to account for the uncertain input data and the lack of uptake/depuration rate constants required for the TK model. The internal concentrations in field gammarids were predicted well, and the estimates varied only by a factor of 0.1-1.9. Fast equilibrium may also be assumed such that bioconcentration factors (BCFs) are used together with the daily river dilution patterns to predict internal concentrations. While this assumption is suitable for compounds observed in our experiment to reach the steady state within 48 h in gammarids, the model overpredicted the concentrations of substances that reach this condition after longer periods. Nevertheless, this approach provides conservative estimates and simplifies the coupling of models as BCFs are slightly more accessible than the rate constants. However, if one is interested in a more detailed exposure information (e.g., peak concentration and the whole-body burden recovery after a spill), then the nonsteady-state formulation should be employed.
Arlos, M. J.; Schürz, F.; Fu, Q.; Lauper, B. B.; Stamm, C.; Hollender, J. (2020) Coupling river concentration simulations with a toxicokinetic model effectively predicts the internal concentrations of wastewater-derived micropollutants in field gammarids, Environmental Science and Technology, 54(3), 1710-1719, doi:10.1021/acs.est.9b05736, Institutional Repository

Effects of treated wastewater on the ecotoxicity of small streams – unravelling the contribution of chemicals causing effects

Wastewater treatment plant effluents are important point sources of micropollutants. To assess how the discharge of treated wastewater affects the ecotoxicity of small to medium-sized streams we collected water samples up- and downstream of 24 wastewater treatment plants across the Swiss Plateau and the Jura regions of Switzerland. We investigated estrogenicity, inhibition of algal photosynthetic activity (photosystem II, PSII) and growth, and acetylcholinesterase (AChE) inhibition. At four sites, we measured feeding activity of amphipods (Gammarus fossarum) in situ as well as water flea (Ceriodaphnia dubia) reproduction in water samples. Ecotoxicological endpoints were compared with results from analyses of general water quality parameters as well as a target screening of a wide range of organic micropollutants with a focus on pesticides and pharmaceuticals using liquid chromatography high-resolution tandem mass spectrometry. Measured ecotoxicological effects in stream water varied substantially among sites: 17β-estradiol equivalent concentrations (EEQbio, indicating the degree of estrogenicity) were relatively low and ranged from 0.04 to 0.85 ng/L, never exceeding a proposed effect-based trigger (EBT) value of 0.88 ng/L. Diuron equivalent (DEQbio) concentrations (indicating the degree of photosystem II inhibition in algae) ranged from 2.4 to 1576 ng/L and exceeded the EBT value (70 ng/L) in one third of the rivers studied, sometimes even upstream of the WWTP. Parathion equivalent (PtEQbio) concentrations (indicating the degree of AChE inhibition) reached relatively high values (37 to 1278 ng/L) mostly exceeding the corresponding EBT (196 ng/L PtEQbio). Decreased feeding activity by amphipods or decreased water flea reproduction downstream compared to the upstream site was observed at one of four investigated sites only. Results of the combined algae assay (PSII inhibition) correlated best with results of chemical analysis for PSII inhibiting herbicides. Estrogenicity was partly and AChE inhibition strongly underestimated based on measured steroidal estrogens respectively organophosphate and carbamate insecticides. An impact of dissolved organic carbon on results of the AChE inhibition assay was obvious. For this assay more work is required to further explore the missing correlation of bioassay data with chemical analytical data. Overall, the discharge of WWTP effluent led to increased estrogenicity, PSII and AChE inhibition downstream, irrespective of upstream land use.
Kienle, C.; Vermeirssen, E. L. M.; Schifferli, A.; Singer, H.; Stamm, C.; Werner, I. (2019) Effects of treated wastewater on the ecotoxicity of small streams – unravelling the contribution of chemicals causing effects, PLoS One, 14(12), e0226278 (30 pp.), doi:10.1371/journal.pone.0226278, Institutional Repository

Microbial community shifts in streams receiving treated wastewater effluent

Wastewater treatment plant (WWTP) effluents release not only chemical constituents in watersheds, but also contain microorganisms. Thus, an understanding of what microorganisms are released and how they change microbial communities within natural streams is needed. To characterize the community shifts in streams receiving WWTP effluent, we sampled water-column microorganisms from upstream, downstream, and the effluent of WWTPs located on 23 headwater streams in which no other effluent was released upstream. We characterized the bacterial community by sequencing the V3-V4 region of the 16S rRNA gene. We hypothesized that the downstream community profile would be a hydraulic mixture between the two sources (i.e., upstream and effluent). In ordination analyses, the downstream bacterial community profile was a mixture between the upstream and effluent. For 14 of the sites, the main contribution (>50%) to the downstream community originated from bacteria in the WWTP effluent and significant shifts in relative abundance of specific sequence variants were detected. These shifts in sequence variants may serve as general bioindicators of wastewater-effluent influenced streams, with a human-gut related Ruminococcus genus displaying the highest shift (30-fold higher abundances downstream). However, not all taxa composition changes were predicted based on hydraulic mixing alone. Specifically, the decrease of Cyanobacteria/Chloroplast reads was not adequately described by hydraulic mixing. The potential alteration of stream microbial communities via a high inflow of human-gut related bacteria and a decrease in autotrophic functional groups resulting from WWTP effluent creates the potential for general shifts in stream ecosystem function.
Mansfeldt, C.; Deiner, K.; Mächler, E.; Fenner, K.; Eggen, R. I. L.; Stamm, C.; Schönenberger, U.; Walser, J.-C.; Altermatt, F. (2020) Microbial community shifts in streams receiving treated wastewater effluent, Science of the Total Environment, 709, 135727 (12 pp.), doi:10.1016/j.scitotenv.2019.135727, Institutional Repository

Agriculture versus wastewater pollution as drivers of macroinvertebrate community structure in streams

Water pollution is ubiquitous globally, yet how the effects of pollutants propagate through natural ecosystems remains poorly understood. This is because the interactive effects of multiple stressors are generally hard to predict. Agriculture and municipal wastewater treatment plants (WWTPs) are often major sources of contaminants for streams, but their relative importance and the role of different pollutants (e.g. nutrients or pesticides) are largely unknown. Using a 'real world experiment' with sampling locations up- and downstream of WWTPs, we studied how effluent discharges affected water quality and macroinvertebrate communities in 23 Swiss streams across a broad land-use gradient.
Variation partitioning of community composition revealed that overall water quality explained approximately 30% of community variability, whereby nutrients and pesticides each independently explained 10% and 2%, respectively. Excluding oligochaetes (which were highly abundant downstream of the WWTPs) from the analyses, resulted in a relatively stronger influence (3%) of pesticides on the macroinvertebrate community composition, whereas nutrients had no influence. Generally, the macroinvertebrate community composition downstream of the WWTPs strongly reflected the upstream conditions, likely due to a combination of efficient treatment processes, environmental filtering and organismal dispersal. Wastewater impacts were most prominently by the Saprobic index, whereas the SPEAR index (a trait-based macroinvertebrate metrics reflecting sensitivity to pesticides) revealed a strong impact of arable cropping but only a weak impact of wastewater.
Overall, our results indicate that agriculture can have a stronger impact on headwater stream macroinvertebrate communities than discharges from WWTP. Yet, effects of wastewater-born micropollutants were clearly quantifiable among all other influence factors. Improving our ability to further quantify the impacts of micropollutants requires highly-resolved water quality and taxonomic data with adequate spatial and temporal sampling. These improvements would help to better account for the underlying causal pathways that drive observed biological responses, such as episodic contaminant peaks and dispersal-related processes.
Burdon, F. J.; Munz, N. A.; Reyes, M.; Focks, A.; Joss, A.; Räsänen, K.; Altermatt, F.; Eggen, R. I. L.; Stamm, C. (2019) Agriculture versus wastewater pollution as drivers of macroinvertebrate community structure in streams, Science of the Total Environment, 659, 1256-1265, doi:10.1016/j.scitotenv.2018.12.372, Institutional Repository

Internal concentrations in gammarids reveal increased risk of organic micropollutants in wastewater-impacted streams

Internal concentrations link external exposure to the potential effect, as they reflect what the organisms actually take up and experience physiologically. In this study, we investigated whether frequently detected risk-driving substances in water were found in the exposed organisms and if they are classified the same based on the whole body internal concentrations. Field gammarids were collected upstream and downstream of ten wastewater treatment plants in mixed land use catchments. The sampling was conducted in autumn and winter, during low flow conditions when diffuse agricultural input was reduced. The field study was complemented with laboratory and flume experiments to determine the bioaccumulation potentials of selected substances. For 32 substances, apparent bioaccumulation factors in gammarids were determined for the first time. With a sensitive multiresidue method based on online-solid phase extraction followed by liquid chromatography coupled to high resolution mass spectrometry, we detected 63 (semi-) polar organic substances in the field gammarids, showing higher concentrations downstream than upstream. Interestingly, neonicotinoids, which are particularly toxic toward invertebrates, were frequently detected and were further determined as major contributors to the toxic pressure based on the toxic unit approach integrating internal concentration and toxic potency. The total toxic pressure based on internal concentrations was substantially higher compared to when external concentrations were used. Thus, internal concentrations may add more value to the current environmental risk assessment that is typically based solely on external exposure.
Munz, N. A.; Fu, Q.; Stamm, C.; Hollender, J. (2018) Internal concentrations in gammarids reveal increased risk of organic micropollutants in wastewater-impacted streams, Environmental Science and Technology, 52(18), 10347-10358, doi:10.1021/acs.est.8b03632, Institutional Repository

Einfluss von Mikroverunreinigungen

Im Projekt EcoImpact wurden die ökotoxikologischen und ökologischen Effekte von Mikroverunreinigungen aus Kläranlagen auf aquatische Lebensgemeinschaften untersucht. Chemische und biologische Untersuchungen oberhalb und unterhalb von Kläranlagen deuten auf Effekte dieser Stoffe hin, die von physiologischen Antworten der Organismen bis hin zu veränderten Ökosystemfunktionen wie z. B. dem Laubabbau reichen. Gezielte Rinnenexperimente mit kontrollierter Wasserqualität unterstützen diese Befunde.
Stamm, C.; Burdon, F.; Fischer, S.; Kienle, C.; Munz, N.; Tlili, A.; Altermatt, F.; Behra, R.; Bürgmann, H.; Joss, A.; Räsänen, K.; Eggen, R. (2017) Einfluss von Mikroverunreinigungen, Aqua & Gas, 97(6), 90-95, Institutional Repository

Integrating chemical analysis and bioanalysis to evaluate the contribution of wastewater effluent on the micropollutant burden in small streams

Surface waters can contain a range of micropollutants from point sources, such as wastewater effluent, and diffuse sources, such as agriculture. Characterizing the source of micropollutants is important for reducing their burden and thus mitigating adverse effects on aquatic ecosystems. In this study, chemical analysis and bioanalysis were applied to assess the micropollutant burden during low flow conditions upstream and downstream of three wastewater treatment plants (WWTPs) discharging into small streams in the Swiss Plateau. The upstream sites had no input of wastewater effluent, allowing a direct comparison of the observed effects with and without the contribution of wastewater. Four hundred and five chemicals were analyzed, while the applied bioassays included activation of the aryl hydrocarbon receptor, activation of the androgen receptor, activation of the estrogen receptor, photosystem II inhibition, acetylcholinesterase inhibition and adaptive stress responses for oxidative stress, genotoxicity and inflammation, as well as assays indicative of estrogenic activity and developmental toxicity in zebrafish embryos. Chemical analysis and bioanalysis showed higher chemical concentrations and effects for the effluent samples, with the lowest chemical concentrations and effects in most assays for the upstream sites. Mixture toxicity modeling was applied to assess the contribution of detected chemicals to the observed effect. For most bioassays, very little of the observed effects could be explained by the detected chemicals, with the exception of photosystem II inhibition, where herbicides explained the majority of the effect. This emphasizes the importance of combining bioanalysis with chemical analysis to provide a more complete picture of the micropollutant burden. While the wastewater effluents had a significant contribution to micropollutant burden downstream, both chemical analysis and bioanalysis showed a relevant contribution of diffuse sources from upstream during low flow conditions, suggesting that upgrading WWTPs will not completely reduce the micropollutant burden, but further source control measures will be required.
Neale, P. A.; Munz, N. A.; Aїt-Aїssa, S.; Altenburger, R.; Brion, F.; Busch, W.; Escher, B. I.; Hilscherová, K.; Kienle, C.; Novák, J.; Seiler, T.-B.; Shao, Y.; Stamm, C.; Hollender, J. (2017) Integrating chemical analysis and bioanalysis to evaluate the contribution of wastewater effluent on the micropollutant burden in small streams, Science of the Total Environment, 576, 785-795, doi:10.1016/j.scitotenv.2016.10.141, Institutional Repository

Pesticides drive risk of micropollutants in wastewater-impacted streams during low flow conditions

Micropollutants enter surface waters through various pathways, of which wastewater treatment plants (WWTPs) are a major source. The large diversity of micropollutants and their many modes of toxic action pose a challenge for assessing environmental risks. In this study, we investigated the potential impact of WWTPs on receiving ecosystems by describing concentration patterns of micropollutants, predicting acute risks for aquatic organisms and validating these results with macroinvertebrate biomonitoring data. Grab samples were taken upstream, downstream and at the effluent of 24 Swiss WWTPs during low flow conditions across independent catchments with different land uses. Using liquid chromatography high resolution tandem mass spectrometry, a comprehensive target screening of almost 400 organic substances, focusing mainly on pesticides and pharmaceuticals, was conducted at two time points, and complemented with the analysis of a priority mixture of 57 substances over eight time points. Acute toxic pressure was predicted using the risk assessment approach of the multi-substance potentially affected fraction, first applying concentration addition for substances with the same toxic mode of action and subsequently response addition for the calculation of the risk of the total mixture. This toxic pressure was compared to macroinvertebrate sensitivity to pesticides (SPEAR index) upstream and downstream of the WWTPs. The concentrations were, as expected, especially for pharmaceuticals and other household chemicals higher downstream than upstream, with the detection frequency of plant protection products upstream correlating with the fraction of arable land in the catchments. While the concentration sums downstream were clearly dominated by pharmaceuticals or other household chemicals, the acute toxic pressure was mainly driven by pesticides, often caused by the episodic occurrence of these compounds even during low flow conditions. In general, five single substances explained much of the total risk, with diclofenac, diazinon and clothianidin as the main drivers. Despite the low predicted acute risk of 0%–2.1% for affected species, a significant positive correlation with macroinvertebrate sensitivity to pesticides was observed. However, more effect data for pharmaceuticals and a better quantification of episodic pesticide pollution events are needed for a more comprehensive risk assessment.
Munz, N. A.; Burdon, F. J.; de Zwart, D.; Junghans, M.; Melo, L.; Reyes, M.; Schönenberger, U.; Singer, H. P.; Spycher, B.; Hollender, J.; Stamm, C. (2017) Pesticides drive risk of micropollutants in wastewater-impacted streams during low flow conditions, Water Research, 110, 366-377, doi:10.1016/j.watres.2016.11.001, Institutional Repository

Micropollutant-induced tolerance of in situ periphyton: establishing causality in wastewater-impacted streams

The overarching aim of this field study was to examine causal links between in-situ exposure to complex mixtures of micropollutants from wastewater treatment plants and effects on freshwater microbial communities in the receiving streams. To reach this goal, we assessed the toxicity of serial dilutions of micropollutant mixtures, extracted from deployed passive samplers at the discharge sites of four Swiss wastewater treatment plants, to in situ periphyton from upstream and downstream of the effluents. On the one hand, comparison of the sensitivities of upstream and downstream periphyton to the micropollutant mixtures indicated that algal and bacterial communities composing the periphyton displayed higher tolerance towards these micropollutants downstream than upstream. On the other hand, molecular analyses of the algal and bacterial structure showed a clear separation between upstream and downstream periphyton across the sites. This finding provides an additional line of evidence that micropollutants from the wastewater discharges were directly responsible for the change in the community structure at the sampling sites by eliminating the micropollutant-sensitive species and favouring the tolerant ones. What is more, the fold increase of algal and bacterial tolerance from upstream to downstream locations was variable among sampling sites and was strongly correlated to the intensity of contamination by micropollutants at the respective sites. Overall, our study highlights the sensitivity of the proposed approach to disentangle effects of micropollutant mixtures from other environmental factors occurring in the field and, thus, establishing a causal link between exposure and the observed ecological effects on freshwater microbial communities.
Tlili, A.; Hollender, J.; Kienle, C.; Behra, R. (2017) Micropollutant-induced tolerance of in situ periphyton: establishing causality in wastewater-impacted streams, Water Research, 111, 185-194, doi:10.1016/j.watres.2017.01.016, Institutional Repository

Unravelling the impacts of micropollutants in aquatic ecosystems: interdisciplinary studies at the interface of large-scale ecology

Human-induced environmental changes are causing major shifts in ecosystems around the globe. To support environmental management, scientific research has to infer both general trends and context dependency in these shifts at global and local scales. Combining replicated real-world experiments, which take advantage of implemented mitigation measures or other forms of human impact, with research-led experimental manipulations can provide powerful scientific tools for inferring causal drivers of ecological change and the generality of their effects. Additionally, combining these two approaches can facilitate communication with stakeholders involved in implementing management strategies. We demonstrate such an integrative approach using the case study EcoImpact, which aims at empirically unravelling the impacts of wastewater-born micropollutants on aquatic ecosystems.
Stamm, C.; Räsänen, K.; Burdon, F. J.; Altermatt, F.; Jokela, J.; Joss, A.; Ackermann, M.; Eggen, R. I. L. (2016) Unravelling the impacts of micropollutants in aquatic ecosystems: interdisciplinary studies at the interface of large-scale ecology, In: Dumbrell, A. J.; Kordas, R. L.; Woodward, G. (Eds.), Large-scale ecology: model systems to global perspectives, 183-223, doi:10.1016/bs.aecr.2016.07.002, Institutional Repository

Environmental context and magnitude of disturbance influence trait-mediated community responses to wastewater in streams

Human land uses and population growth represent major global threats to biodiversity and ecosystem services. Understanding how biological communities respond to multiple drivers of human-induced environmental change is fundamental for conserving ecosystems and remediating degraded habitats. Here, we used a replicated ‘real-world experiment’ to study the responses of invertebrate communities to wastewater perturbations across a land-use intensity gradient in 12 Swiss streams. We used different taxonomy and trait-based community descriptors to establish the most sensitive indicators detecting impacts and to help elucidate potential causal mechanisms of change. First, we predicted that streams in catchments adversely impacted by human land-uses would be less impaired by wastewater inputs because their invertebrate communities should be dominated by pollution-tolerant taxa (‘environmental context’). Second, we predicted that the negative effects of wastewater on stream invertebrate communities should be larger in streams that receive proportionally more wastewater (‘magnitude of disturbance’). In support of the ‘environmental context’ hypothesis, we found that change in the Saprobic Index (a trait-based indicator of tolerance to organic pollution) was associated with upstream community composition; communities in catchments with intensive agricultural land uses (e.g., arable cropping and pasture) were generally more resistant to eutrophication associated with wastewater inputs. We also found support for the ‘magnitude of disturbance’ hypothesis. The SPEAR Index (a trait-based indicator of sensitivity to pesticides) was more sensitive to the relative input of effluent, suggesting that toxic influences of wastewater scale with dilution. Whilst freshwater pollution continues to be a major environmental problem, our findings highlight that the same anthropogenic pressure (i.e., inputs of wastewater) may induce different ecological responses depending on the environmental context and community metrics used. Thus, remediation strategies aiming to improve stream ecological status (e.g., rehabilitating degraded reaches) need to consider upstream anthropogenic influences and the most appropriate indicators of restoration success.
Burdon, F. J.; Reyes, M.; Alder, A. C.; Joss, A.; Ort, C.; Räsänen, K.; Jokela, J.; Eggen, R. I. L.; Stamm, C. (2016) Environmental context and magnitude of disturbance influence trait-mediated community responses to wastewater in streams, Ecology and Evolution, 6(12), 3923-3939, doi:10.1002/ece3.2165, Institutional Repository

Wastewater as a point source of antibiotic-resistance genes in the sediment of a freshwater lake

Antibiotic-resistance genes (ARGs) are currently discussed as emerging environmental contaminants. Hospital and municipal sewage are important sources of ARGs for the receiving freshwater bodies. We investigated the spatial distribution of different ARGs (sul1, sul2, tet(B), tet(M), tet(W) and qnrA) in freshwater lake sediments in the vicinity of a point source of treated wastewater. ARG contamination of Vidy Bay, Lake Geneva, Switzerland was quantified using real-time PCR and compared with total mercury (THg), a frequently particle-bound inorganic contaminant with known natural background levels. Two-dimensional mapping of the investigated contaminants in lake sediments with geostatistical tools revealed total and relative abundance of ARGs in close proximity of the sewage discharge point were up to 200-fold above levels measured at a remote reference site (center of the lake) and decreased exponentially with distance. Similar trends were observed in the spatial distribution of different ARGs, whereas distributions of ARGs and THg were only moderately correlated, indicating differences in the transport and fate of these pollutants or additional sources of ARG contamination. The spatial pattern of ARG contamination and supporting data suggest that deposition of particle-associated wastewater bacteria rather than co-selection by, for example, heavy metals was the main cause of sediment ARG contamination.
Czekalski, N.; Díez, E. G.; Bürgmann, H. (2014) Wastewater as a point source of antibiotic-resistance genes in the sediment of a freshwater lake, ISME Journal, 8(7), 1381-1390, doi:10.1038/ismej.2014.8, Institutional Repository

Choice of capture and extraction methods affect detection of freshwater biodiversity from environmental DNA

Environmental DNA (eDNA) is used to detect biodiversity by the capture, extraction, and identification of DNA shed to the environment. However, eDNA capture and extraction protocols vary widely across studies. This use of different protocols potentially biases detection results and could significantly hinder a reliable use of eDNA to detect biodiversity. We tested whether choice of eDNA capture and extraction protocols significantly influenced biodiversity detection in aquatic systems. We sampled lake and river water, captured and extracted eDNA using six combinations of different protocols with replication, and tested for the detection of four macroinvertebrate species. Additionally, using the same lake water technical replicates, we compared the effect of capture and extraction protocols on metabarcode detections of biodiversity using 16S for eubacteria and cytochrome c oxidase I (COI) for eukaryotes. Protocol combinations for capture and extraction of eDNA significantly influenced DNA yield and number of sequences obtained from next generation sequencing. We found significantly different detection rates of species ranging from zero percent to thirty-three percent. Differences in which protocol combinations produced the highest metabarcoded biodiversity were detected and demonstrate that different protocols are required for different biodiversity targets. Our results highlight that the choice of molecular protocols used for capture and extraction of eDNA from water can strongly affect biodiversity detection. Consideration of biases caused by choice of protocols should lead to a more consistent and reliable molecular workflow for repeatable and increased detection of biodiversity in aquatic communities.
Deiner, K.; Walser, J.-C.; Mächler, E.; Altermatt, F. (2015) Choice of capture and extraction methods affect detection of freshwater biodiversity from environmental DNA, Biological Conservation, 183, 53-63, doi:10.1016/j.biocon.2014.11.018, Institutional Repository

Reducing the discharge of micropollutants in the aquatic environment: the benefits of upgrading wastewater treatment plants

Micropollutants (MPs) as individual compounds or in complex mixtures are relevant for water quality and may trigger unwanted ecological effects. MPs originate from different point and diffuse sources and enter water bodies via different flow paths. Effluents from conventional wastewater treatment plants (WWTPs), in which various MPs are not or not completely removed, is one major source. To improve the water quality and avoid potential negative ecological effects by micropollutants, various measures to reduce the discharge should be taken. In this feature we discuss one of these measures; the benefits of upgrading WWTPs toward reduced MP loads and toxicities from wastewater effluents, using the recently decided Swiss strategy as an example. Based on (i) full-scale case studies using ozonation or powder activated carbon treatment, showing substantial reduction of MP discharges and concomitant reduced toxicities, (ii) social and political acceptance, (iii) technical feasibility and sufficient cost-effectiveness, the Swiss authorities recently decided to implement additional wastewater treatment steps as mitigation strategy to improve water quality. Since MPs are of growing global concern, the concepts and considerations behind the Swiss strategy are explained in this feature, which could be of use for other countries as well. It should be realized that upgrading WWTPs is not the only solution to reduce the discharge of MPs entering the environment, but is part of a broader, multipronged mitigation strategy.
Eggen, R. I. L.; Hollender, J.; Joss, A.; Schärer, M.; Stamm, C. (2014) Reducing the discharge of micropollutants in the aquatic environment: the benefits of upgrading wastewater treatment plants, Environmental Science and Technology, 48(14), 7683-7689, doi:10.1021/es500907n, Institutional Repository

Model-based evaluation of reduction strategies for micropollutants from wastewater treatment plants in complex river networks

A model based on graph theory was developed to efficiently evaluate the impact of the effluent from 742 wastewater treatment plants (WWTPs) on micropollutant loading throughout all river catchments in Switzerland. Model results agree well with measured loads for 12 compounds in river water samples, revealing mean predictive accuracy factors between 0.8 and 3.4. Subsequently, pollutant concentrations were predicted for river sections downstream from 543 WWTPs where hydrological information was available, and compared with recent recommendations for water quality criteria. At base flow conditions, carbamazepine concentrations (parent compound only) are ubiquitously below a water quality criterion of 0.5 μg L−1. In contrast, the sum of diclofenac and its metabolites is expected to exceed the corresponding water quality criterion of 0.1 μg L−1 in 224 river sections. If diclofenac cannot be eliminated at the source, the model suggests a directed upgrade of 173 WWTPs to meet the condition that concentrations are never to exceed this water quality criterion.
Ort, C.; Hollender, J.; Schaerer, M.; Siegrist, H. (2009) Model-based evaluation of reduction strategies for micropollutants from wastewater treatment plants in complex river networks, Environmental Science and Technology, 43(9), 3214-3220, doi:10.1021/es802286v, Institutional Repository

Pollution-induced community tolerance (PICT): towards an ecologically relevant risk assessment of chemicals in aquatic systems

1. A major challenge in environmental risk assessment of pollutants is establishing a causal relationship between field exposure and community effects that integrates both structural and functional complexity within ecosystems.
2. Pollution-induced community tolerance (PICT) is a concept that evaluates whether pollutants have exerted a selection pressure on natural communities. PICT detects whether a pollutant has eliminated sensitive species from a community and thereby increased its tolerance. PICT has the potential to link assessments of the ecological and chemical status of ecosystems by providing causal analysis for effect-based monitoring of impacted field sites.
3. Using PICT measurements and microbial community endpoints in environmental assessment schemes could give more ecological relevance to the tools that are now used in environmental risk assessment. Here, we propose practical guidance and a list of research issues that should be further considered to apply the PICT concept in the field.
Tlili, A.; Berard, A.; Blanck, H.; Bouchez, A.; Cássio, F.; Eriksson, K. M.; Morin, S.; Montuelle, B.; Navarro, E.; Pascoal, C.; Pesce, S.; Schmitt-Jansen, M.; Behra, R. (2016) Pollution-induced community tolerance (PICT): towards an ecologically relevant risk assessment of chemicals in aquatic systems, Freshwater Biology, 61(12), 2141-2151, doi:10.1111/fwb.12558, Institutional Repository
