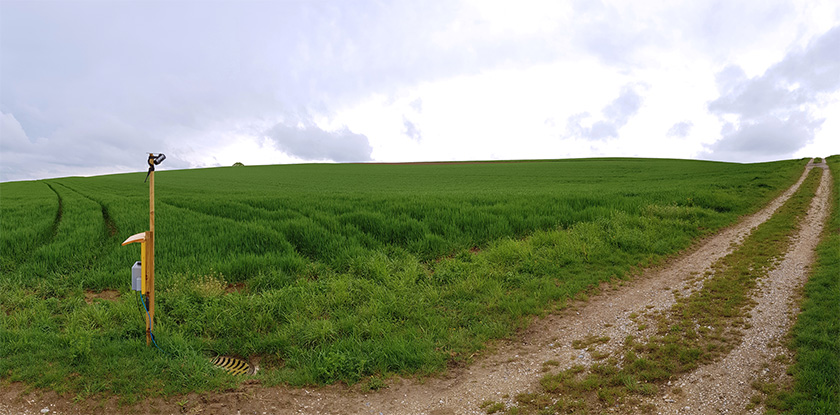

Agricultural pesticides transported to surface waters pose a major risk for aquatic ecosystems. Modelling studies indicate that the inlets of agricultural storm drainage systems can considerably increase the connectivity of surface runoff and pesticides to surface waters. These model results have however not yet been validated with field measurements. In this study, we measured discharge and concentrations of 51 pesticides in four out of 158 storm drainage inlets of a small Swiss agricultural catchment (2.8 km²) and in the receiving stream. For this, we performed an event-triggered sampling during 19 rain events and collected plot-specific pesticide application data. Our results show that agricultural storm drainage inlets strongly influence surface runoff and pesticide transport in the study catchment. The concentrations of single pesticides in inlets amounted up to 62 µg/L. During some rain events, transport through single inlets caused more than 10% of the stream load of certain pesticides. An extrapolation to the entire catchment suggests that during selected events on average 30 to 70% of the load in the stream was transported through inlets. Pesticide applications on fields with surface runoff or spray drift potential to inlets led to increased concentrations in the corresponding inlets. Overall, this study corroborates the relevance of such inlets for pesticide transport by establishing a connectivity between fields and surface waters, and by their potential to deliver substantial pesticide loads to surface waters.

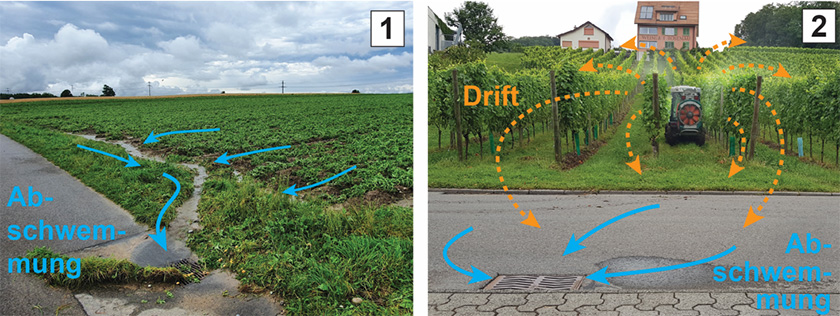

Spray drift is considered a major pesticide transport pathway to surface waters. Current research and legislation usually only considers direct spray drift. However, also spray drift on roads and subsequent wash-off to surface waters was identified as a possible transport pathway. Hydraulic shortcuts (storm drainage inlets, channel drains, ditches) have been shown to connect roads to surface waters, thus increasing the risk of drift wash-off to surface waters. However, the importance of this pathway has never been assessed on larger scales. To address this knowledge gap, we studied 26 agricultural catchments with a predominance of arable cropping (n = 17) and vineyards (n = 9). In these study sites, we assessed the occurrence of shortcuts by field mapping. Afterwards, we modelled the areas of roads drained to surface waters using a high-resolution digital elevation model (0.5 m resolution) and a multiple flow algorithm. Finally, we modelled drift deposition to drained roads and surface waters using a spatially explicit, georeferenced spray drift model. Our results show that for most sites, the drift to drained roads is much larger than the direct drift to surface waters. In arable land sites, drift to roads exceeds the direct drift by a factor of 4.5 to 18, and in vineyard sites by 35 to 140. In arable land sites, drift to drained roads is rather small (0.0015% to 0.0049% of applied amount) compared to typical total pesticide losses to surface waters. However, substantial drift to drained roads in vineyard sites was found (0.063% to 0.20% of applied amount). Current literature suggests that major fractions of the drift deposited on roads can be washed off during rain events, especially for pesticides with low soil adsorption coefficients. For such pesticides and particularly in vineyards, spray drift wash-off from drained roads is therefore expected to be a major transport pathway to surface waters.

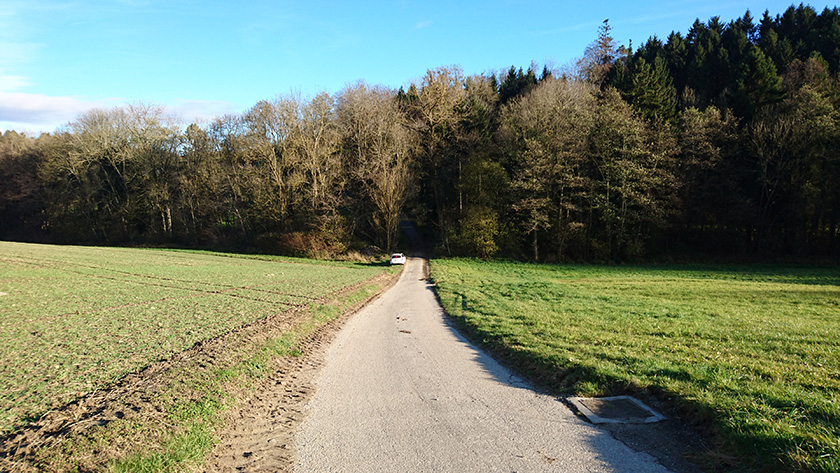

Surface runoff represents a major pathway for pesticide transport from agricultural areas to surface waters. The influence of artificial structures (e.g. roads, hedges, and ditches) on surface runoff connectivity has been shown in various studies. In Switzerland, so-called hydraulic shortcuts (e.g. inlet and maintenance shafts of road or field storm drainage systems) have been shown to influence surface runoff connectivity and related pesticide transport. Their occurrence and their influence on surface runoff and pesticide connectivity have, however, not been studied systematically.
To address that deficit, we randomly selected 20 study areas (average size of 3.5 km²) throughout the Swiss plateau, representing arable cropping systems. We assessed shortcut occurrence in these study areas using three mapping methods, namely field mapping, drainage plans, and high-resolution aerial images. Surface runoff connectivity in the study areas was analysed using a 2×2 m digital elevation model and a multiple-flow algorithm. Parameter uncertainty affecting this analysis was addressed by a Monte Carlo simulation. With our approach, agricultural areas were divided into areas that are either directly, indirectly (i.e. via hydraulic shortcuts), or not at all connected to surface waters. Finally, the results of this connectivity analysis were scaled up to the national level, using a regression model based on topographic descriptors, and were then compared to an existing national connectivity model.
Inlet shafts of the road storm drainage system were identified as the main shortcuts. On average, we found 0.84 inlet shafts and a total of 2.0 shafts per hectare of agricultural land. In the study catchments, between 43 % and 74 % of the agricultural area is connected to surface waters via hydraulic shortcuts. On the national level, this fraction is similar and lies between 47 % and 60 %. Considering our empirical observations led to shifts in estimated fractions of connected areas compared to the previous connectivity model. The differences were most pronounced in flat areas of river valleys.
These numbers suggest that transport through hydraulic shortcuts is an important pesticide flow path in a landscape where many engineered structures exist to drain excess water from fields and roads. However, this transport process is currently not considered in Swiss pesticide legislation and authorization. Therefore, current regulations may fall short in addressing the full extent of the pesticide problem. However, independent measurements of water flow and pesticide transport to quantify the contribution of shortcuts and validating the model results are lacking. Overall, the findings highlight the relevance of better understanding the connectivity between fields and receiving waters and the underlying factors and physical structures in the landscape.

Die schweizerische Agrarlandschaft weist ein dichtes Weg- und Strassennetz auf, dessen Entwässerung oft direkt in Oberflächengewässer führt. Es wirkt damit als hydraulischer Kurzschluss und als Transportpfad für Pflanzenschutzmittel (PSM). Felduntersuchungen und Modellrechnungen zeigen, dass gleich viel Ackerfläche über Kurzschlüsse mit einem Gewässer verbunden ist wie direkt angeschlossen ist. Zusätzlich wurden bedeutende PSM-Konzentrationen in Kurzschlüssen gemessen. Das weist darauf hin, dass Kurzschlüsse erheblich zur Belastung der Schweizer Gewässer mit PSM beitragen.
